Are you looking to replace your Kenmore softener? We're here to help. Let's take a look at the table below to help identify which model will work best for you!
Things to Consider:
- Grain capacity. You can find the grain capacity on the sticker decal of your current unit and compare that with the 3 options listed.
- Bypass Valve. Read more about that below.
- Dimensions. Click on the name of the new models below to see a list of direct replacement models on Kenmorewatersolutions.com based on dimensions of both.
| New Models |
Capacity (grains) |
Bypass |
IN / OUT Dimensions on Valve (Approx.) |
|
(625.383500) |
32,000 | Height: 41-3/8″ Distance between: 3-3/8″ |
|
|
(625.384200) |
40,000 | Height: 41-3/8″ Distance between: 3-3/8″ |
|
|
(625.385200) |
31,000 | Height: 41-3/4″ Distance between: 3-3/4″ |
Bypass Information

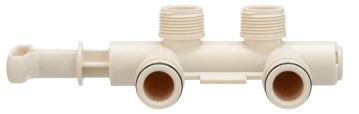

3/4" Bypass - Newly designed with threading directly on the plastic mold; no separate adaptors needed. If preferred, the older 3/4" Bypass Kit w/Adaptors is still available to purchase separately. Please keep in mind this new bypass design when planning and measuring your plumbing connections.

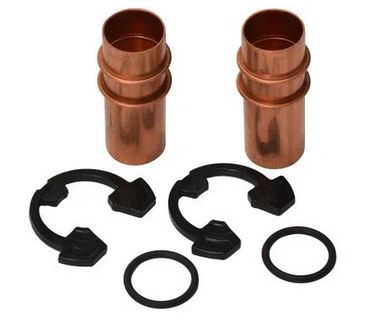

1" Bypass - This design has not been changed, but the adaptors are now made of plastic. If preferred, a Copper Adaptor Kit can be purchased separately, and will connect to the plastic bypass assembly in the same way.
